Robust burner technology. For industry and the energy sector.

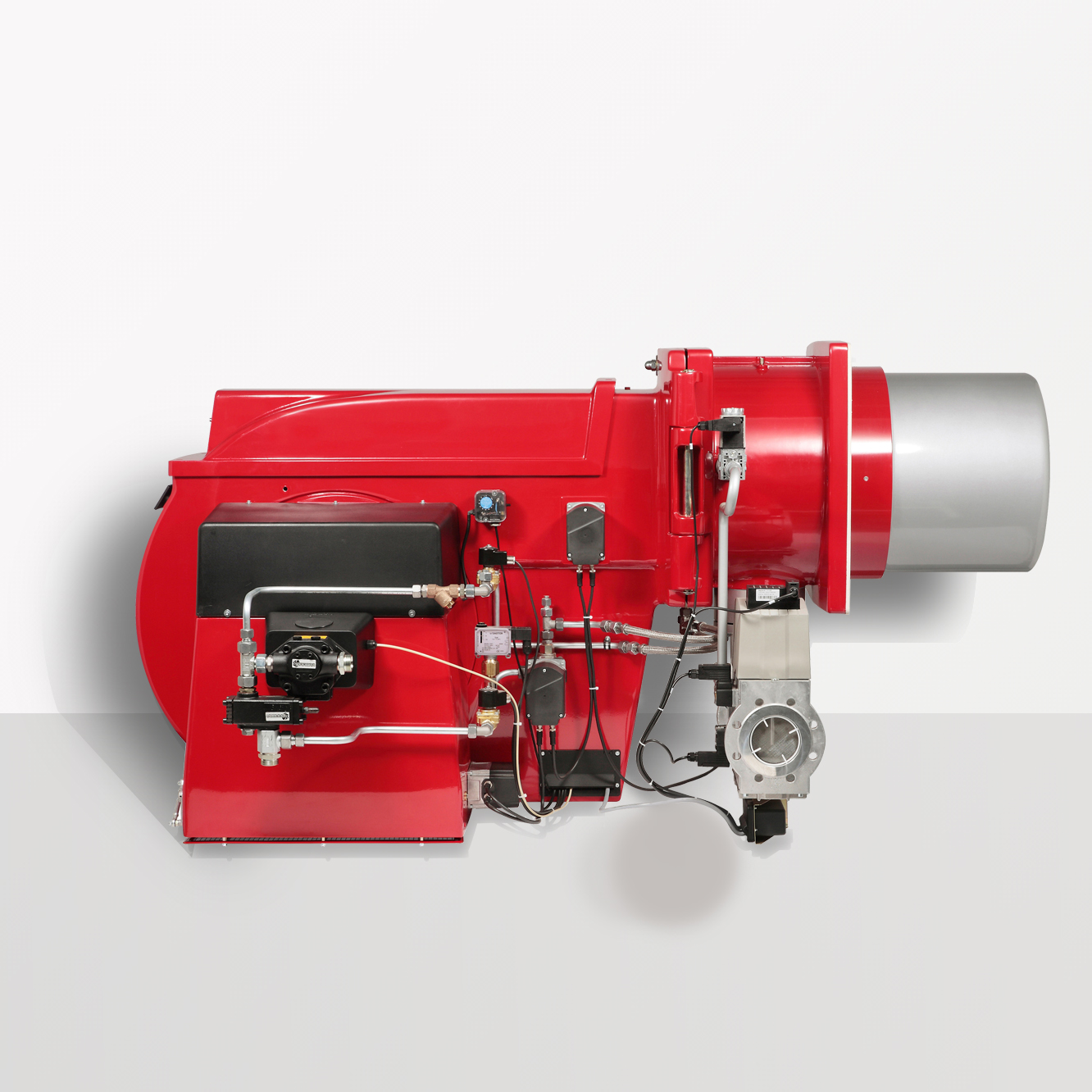

The Weishaupt 50–70-series burners (1,700 to 40,000 MBTU/h)

These tried-and-tested Weishaupt gas, oil, and dual-fuel burners were specially developed for industrial and energy-sector applications. They represent decades of experience and high quality standards.

Benefits
Flexible range of applications

The spectrum of potential applications in the 1,700 to 40,000 MBTU/h range stretches from hot-water and steam boilers to air heaters and thermal-process plant. With its broad palette of industrial burners, which can be operated on almost any gaseous or liquid fuel, Weishaupt has the right burner for virtually every application.

Digital combustion management

Digital combustion management, which is included in this range of burners as standard, provides for the economical regulation of gas and oil and simplifies the operation and maintenance of the burner. It also offers the possibility of communication with various monitoring and control systems, up to and including integration into complete building management systems.

Ultimate quality

The combination of select materials, decades of experience in the state-of-the-art Weishaupt Research and Development Institute, and the latest manufacturing practices sees Weishaupt burners recognised as top-quality products the world over.

Reliability
Maintenance-friendly

The clear layout of the burner with its easily visible and accessible components ensures comprehensive and reliable service - no ifs or buts.

That's reliability

Service and support is available to customers 24/7 through Weishaupt's comprehensive network. This ensures that systems with a Weishaupt burner always perform reliably.

Technology
multiflam®

Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.

Key to the system is a special Mixing assembly  that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.

The various Weishaupt burners that are available in multiflam® execution cover a range of capacities extending from 340 MBTU/h to 78,500 MBTU/h.

50–70-series burners

Type Rating (MBTU/h)
G60/2 1,706 - 15,355
G70/1 2,559 - 23,885
G70/2 3,071 - 34,121
Type Rating (MBTU/h)
G60/2 2,133 - 17,743
G70/1 2,388 - 23,885
G70/2 2,730 - 29,003
Type Rating (MBTU/h)
G70/4 3,412 - 39,922
Type Rating (MBTU/h)
RL60/2 4,470 - 24,789
RL70/1 6,500 - 29,856
RL70/2 6,500 - 37,192
Type Rating (MBTU/h)
RMS60/2 6,142 - 24,789
RMS70/1 6,910 - 29,856
RMS70/2 6,910 - 37,192
Type Rating (MBTU/h)
RGL60/2 2,030 - 15,355
RGL70/1 2,559 - 23,885
RGL70/2 3,071 - 34,121
Type Rating (MBTU/h)
RGL50/1 1,706 - 11,601
RGL50/2 2,047 - 16,719
RGL70/1 2,730 - 24,909
RGL70/2 3,412 - 34,121
Type Rating (MBTU/h)
RGL70/4 3,412 - 39,922
Type Rating (MBTU/h)
RGMS60/2 2,730 - 20,814
RGMS70/1 2,730 - 25,250
RGMS70/3 3,412 - 36,510
RGMS70/4 3,412 - 39,922

Information. Detailed, comprehensive, interesting.

Informationsmaterial Magazin

Industrial burners: Time-tested and approved.

Hot water, steam, thermal fluid, or hot air – Weishaupt industrial burners heat every medium reliably. An integral load controller ensures equipment-friendly operation and uniform temperatures/pressures.

Control and display unit with clear-text display

  • 4 language packs, each with 6 languages
  • Integrated memory for data backup
Opener
W-FM100/200 digital combustion manager

  • With integrated connection terminals and bus interface
Opener
Frequency convertor for VSD

  • Speed control software included in the combustion manager as standard
  • Improves electrical efficiency and reduces power costs
Opener
