Our classic. The Weishaupt monarch® burners.

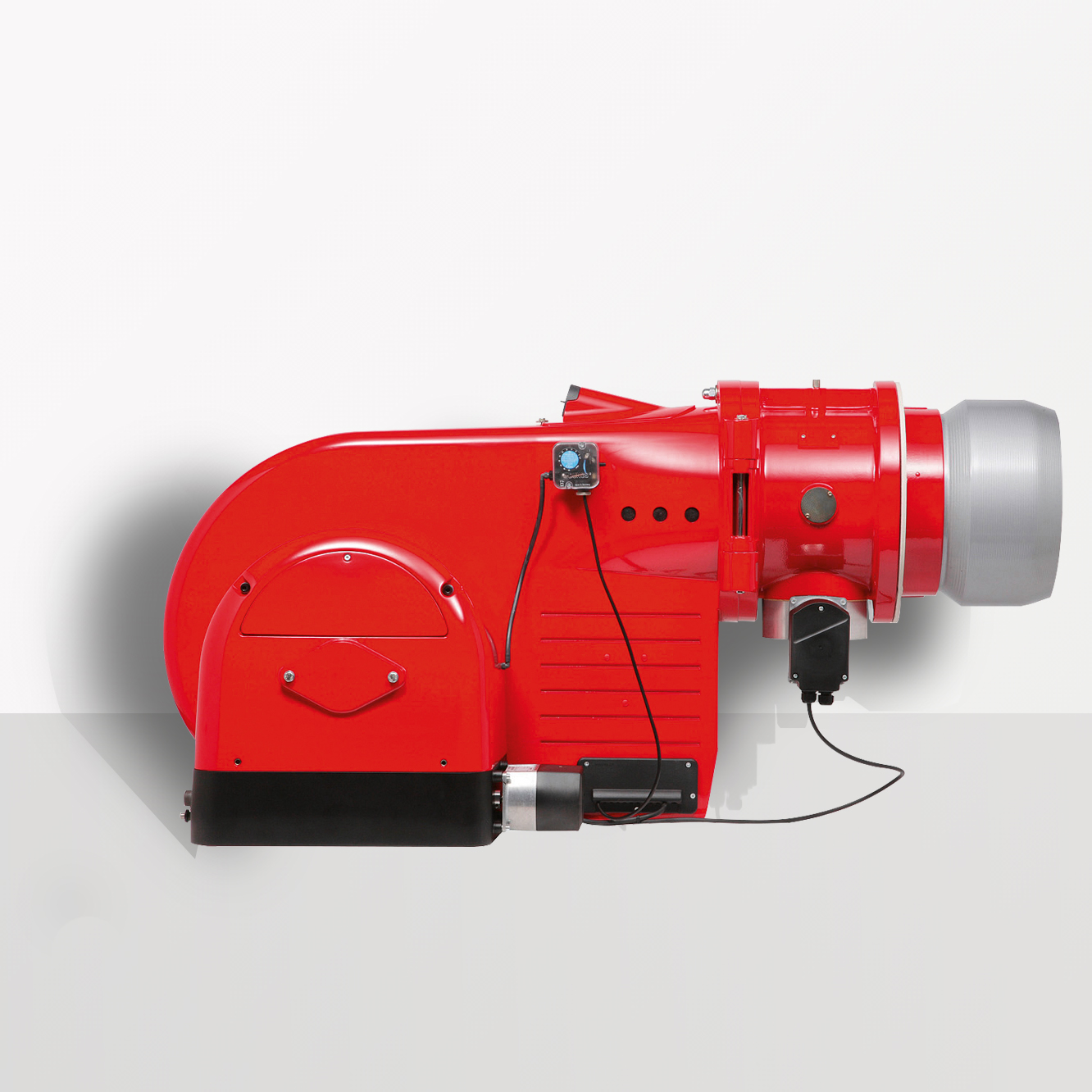

The Weishaupt WM-series monarch® burners (185 to 41,000 MBTU/h)

The classic monarch® burner from Weishaupt laid the cornerstone that underlies the brand: reliability. The current range is robust, durable, and equipped with the latest digital technology. Weishaupt monarch® burners are available as gas, oil, and dual-fuel units.

Benefits
Outstanding price-to-performance ratio

Well-thought-out burner design enables the use of various combustion management systems. That makes it possible to meet customers' requirements cost effectively and to offer a system that will be an all-round good investment.

Versatility

The special matching of the flame geometry to the Heat generator 's combustion chamber is every Weishaupt burner's recipe for success. The combination of electronic compound regulation and the right Mixing assembly  allows customised use on different heat generators thermal process plant.

User-friendly concept

All components, such as those for the control of the fuel and air supplies, are clearly arranged and readily accessible.

Particularly quiet operation

An innovative fan unit and aerodynamic housing design minimizes noise development.

Also suitable for biogenic fuels

Weishaupt oil and dual-fuel burners are generally suitable for gas oil and Low-sulphur gas oil  (#2 oil as per ASTM D396). Bio-oil blends up to B10 can also be used in the same way as standard oils without any need for concern – guaranteed

Applications
Simple and universal installation

All electrical components have plug connections. The burners can be hinged open to the left or right-hand side.

Futureproof

The digital combustion management system employed by monarch® burners offers the possibility of communication with other systems, enabling the burner to be integrated with building management and other automation systems. Industry standards, like remote control, monitoring, and fault diagnosis, are well understood by Weishaupt.

Special versions

Weishaupt develops and builds burners for almost all applications – including vertically firing versions.

Technology
multiflam®

Weishaupt's patented multiflam® technology enables large combustion plant to meet very low emission limits.

Key to the system is a special Mixing assembly  that establishes an internal flue gas recirculation. This cools the flame and reduces the formation of nitrogen oxides. The NOx levels that can be achieved are comparable to those of compact burners.

The various Weishaupt burners that are available in multiflam® execution cover a range of capacities extending from 340 MBTU/h to 78,500 MBTU/h.

Flue gas recirculation

Weishaupt's 4LN-version burners meet the world's most stringent Emissions  limits. A 4LN-version burner is equipped with a flue gas recirculation system that has its control components integrated into the burner.

Gaseous Fuels  contain almost no sulphur, and so their flue gases mostly comprise Carbon dioxide  (CO 2), steam (H2O), and nitrogen (N2). This is beneficial to the flue gas recirculation, since there is no ash or soot to contaminate the system.

Special adaptations of the Mixing assembly  together with the W-FM200 digital Combustion manager  ensure a high degree of flame stability and reliable operational behaviour.

Premix

NOx emission values below 10 ppm are achieved by Weishaupt premix burners.

Premixing followed by surface-stabilised combustion has been state of the art for many years in small condensing boilers. Premix Low-NOx (PLN) burners with NOx Emissions  below 10 ppm are the result of further development work at Weishaupt to extend premix technology to burners with larger capacity ranges.

Surface-stabilised combustion relies on a homogeneous gas/air mixture. For that reason, a totally new Mixing assembly  was developed for the PLN-version burners. A key feature is the separated gas and air feeds, with the two media not being brought together before the burner tube.

WM-series monarch® burners

Type Rating (MBTU/h)
WM-G10/2 290 - 2,388
WM-G10/3 444 - 3,583
WM-G10/4 444 - 3,924
WM-G20/2 614 - 5,801
WM-G20/3 853 - 8,530
WM-G20/4 1,024 - 10,236
WM-G30/2 1,877 - 17,061
Type Rating (MBTU/h)
WM-G20/2 682 - 4,948
WM-G20/3 1,194 - 6,824
WM-G30/1 1,365 - 12,966
WM-G30/2 1,706 - 17,061
WM-G30/3 1,706 - 17,061
WM-G50/1 3,412 - 25,591
WM-G50/2 3,412 - 37,534
Type Rating (MBTU/h) Typ
WM-G10/2 341 - 2,047 WM-G10/2
WM-G10/3 427 - 3,071 WM-G10/3
WM-G20/2 682 - 4,948 WM-G20/2
WM-G20/3 1,194 - 6,824 WM-G20/3
WM-G30/1 1,365 - 11,942 WM-G30/1
WM-G30/2 1,706 - 15,355 WM-G30/2
WM-G30/3 1,706 - 17,061 WM-G30/3
WM-G50/0 2,559 - 23,885 WM-G50/0
WM-G50/1 2,559 - 26,273 WM-G50/1
Type Rating (MBTU/h)
WM-G10/1 188 - 1,194
WM-G10/2 256 - 2,150
WM-G10/3 427 - 3,071
WM-G10/4 427 - 3,753
WM-G20/2 853 - 5,459
WM-G20/3 1,024 - 6,824
WM-G30/1 1,194 - 9,554
WM-G30/2 1,365 - 12,966
WM-G30/3 2,047 - 18,426
WM-G30/4 2,730 - 20,473
Type Rating (MBTU/h)
WM-G10/1 188 - 1,382
WM-G10/2 222 - 2,150
WM-G10/3 341 - 3,412
WM-G10/4 375 - 4,265
WM-G20/2 512 - 7,165
WM-G20/3 1,194 - 8,872
WM-G30/1 1,194 - 10,578
WM-G30/2 1,535 - 13,990
WM-G30/3 2,047 - 19,449
WM-G30/4 2,047 - 21,155
WM-G50/1 2,730 - 27,297
WM-G50/2 3,412 - 37,534
WM-G50/3 3,412 - 40,946
Type
WM-G10/1
WM-G10/2
WM-G10/3
WM-G10/4
WM-G20/2
Type Rating (MBTU/h)
WM-L10/2 409 - 2,047
WM-L10/3 682 - 3,071
WM-L20/2 1,365 - 4,948
WM-L20/3 1,535 - 6,824
WM-L20/4 1,194 - 8,360
WM-L30/1 1,535 - 11,942
WM-L30/2 2,047 - 15,355
WM-L30/3 2,047 - 17,061
WM-L50/0 4,095 - 23,885
WM-L50/1 4,095 - 26,273
Type Rating (MBTU/h)
WM-L10/1 256 - 1,382
WM-L10/2 512 - 2,047
WM-L10/3 853 - 2,730
WM-L10/4 1,109 - 3,822
WM-L20/1 1,365 - 4,777
WM-L20/2 2,047 - 7,165
WM-L20/3 2,730 - 8,872
WM-L30/1 2,730 - 10,578
WM-L30/2 3,071 - 13,990
WM-L30/3 3,753 - 19,449
WM-L50/1 4,095 - 27,297
WM-L50/2 5,971 - 37,534
WM-L50/3 5,971 - 40,946
Type Rating (MBTU/h)
WM-S10/1 341 - 1,535
WM-S10/2 597 - 2,388
WM-S10/3 785 - 3,003
WM-S10/4 1,024 - 3,822
WM-S20/2 1,535 - 7,507
WM-S20/3 2,388 - 8,360
WM-S30/1 2,559 - 9,554
WM-S30/2 3,071 - 12,625
WM-S30/3 3,753 - 18,426
Type Rating (MBTU/h)
WM-GL20/2 682 - 4,948
WM-GL20/3 1,194 - 6,824
WM-GL30/1 1,535 - 12,625
WM-GL30/2 1,706 - 15,355
WM-GL30/3 1,706 - 17,061
WM-GL50/0 3,412 - 25,591
WM-GL50/1 3,412 - 28,321
WM-GL50/2 3,753 - 37,534
Type Rating (MBTU/h)
WM-GL10/2 341 - 2,047
WM-GL10/3 682 - 3,003
WM-GL20/2 682 - 4,948
WM-GL20/3 1,194 - 6,824
WM-GL20/4 1,024 - 8,360
WM-GL30/1 1,365 - 11,942
WM-GL30/2 1,706 - 15,355
WM-GL30/3 1,706 - 17,061
WM-GL50/0 2,559 - 23,885
WM-GL50/1 2,559 - 26,273
Type Rating (MBTU/h)
WM-GL10/1 409 - 1,382
WM-GL10/2 580 - 2,150
WM-GL10/3 819 - 3,412
WM-GL10/4 1,024 - 4,265
WM-GL20/2 512 - 6,824
WM-GL20/3 853 - 8,360
WM-GL30/1 1,194 - 10,578
WM-GL30/2 1,535 - 13,990
WM-GL30/3 2,047 - 19,449
WM-GL50/1 2,730 - 27,297
WM-GL50/2 3,412 - 37,534
WM-GL50/3 3,412 - 40,946
Type Rating (MBTU/h)
WM-GS20/2 1,535 - 5,801
WM-GS20/3 2,388 - 7,507
WM-GS30/1 1,194 - 10,578
WM-GS30/2 3,071 - 13,649
WM-GS30/3 2,047 - 19,449
